Kidney Malformations

Multicystic Dysplastic Kidneys

This is a kidney malformation resulting in a non-functioning kidney with large fluid-filled cysts

– The kidney does not contain any renal tissue and there is no connection with the bladder.

– It is due to failed union of the ureteric bud which forms the ureter, pelvis, calyces and collecting ducts and the nephrogenic mesenchyme which forms the kidney tissue

multicystic dysplastic kidneys

Symptoms:

– The affected kidney is non-functional

– Potter syndrome (severe oligohydramnios and poor foetal development) will result if the lesion is bilateral

Management:

– Half of the affected kidneys with involute by the age of around 2 years

– If the kidney remains large or causes complications (e.g., hypertension), nephrectomy may be needed.

Polycystic kidney disease

This is a genetic condition which leads to the development of multiple cysts on the kidneys.

– It exists as both autosomal dominant and recessive forms:

Autosomal dominant

This is due to a mutation is PKD1 (Chr 16), or PKD2 (Chr 4)

This is less severe that the autosomal recessive form

Symptoms:

– Clinically silent initially but gives symptoms in early adulthood

 – Hypertension (due to renin release), haematuria, cyst infection and kidney failure

– Associated with liver cysts, Berry aneurysms, cardiovascular abnormalities (Mitral valve prolapse, valve incompetence, aortic dissection)

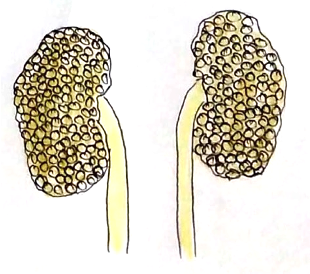

polycystic kidney disease

Diagnosis:

– Abdominal ultrasound is used to detect cysts

Management:

– High water intake and kidney transplantation

– Tolvaptan if patients have CKD stage 2/3 or rapidly progressing disease

Autosomal recessive

This is due to mutation in Chromosome 6 (fibrocystin) needed for renal tubule development

Symptoms:

– Presents in infants with renal cysts giving renal failure and hypertension

– Gives associated hepatic fibrosis giving portal hypertension and hepatic cysts

polycystic kidney disease

Diagnosis:

Prenatal screening or ultrasound during infancy

Management:

Individuals will probably require kidney transplantation

Horseshoe kidney

This is a condition which occurs when the kidneys are conjoined.

– Rather than being on the two flanks, the single kidney is situated in the lower part of the abdomen near the origin of the inferior mesenteric artery.

Symptoms:

Often asymptomatic, but experience nausea, UTI and stones more frequently

Management:

No treatment for renal fusion, just symptomatic management.

horseshoe kidney

Duplex kidney

This is a developmental condition in which one or both conditions have two ureters which drain urine

– It is the most common renal abnormality occurring in every 1 in 100 people

– It is due to premature division of the ureteric bud, which forms the ureter, pelvis, calyces and collecting ducts

– It can be incomplete (where the two separate ureters join to form a single ureter which enters the bladder) or complete (where two separate ureters from the kidney enter the bladder)

– The duplex ureters lead to problems with the draining or urine so leads to complications of urinary flow

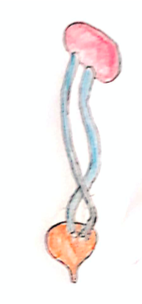

duplex kidney

Symptoms:

The ureters often have abnormal drainage causing:

– Urinary Reflux –> this predisposes to urinary tract infections

– Ectopic drainage into urethra/vagina –> this can lead to urinary incontinence

– Ureterocoele

Management:

– If asymptomatic, no treatment is required

– If frequent complications, surgical treatment with ureteroureterostomy maybe required.

Renal Agenesis

This describes the absence of both kidneys and is associated with a high mortality rate.

– Without kidneys, this leads to severe oligohydramnios in utero due to lack of foetal urine production which contributes to the amniotic fluid volume

– This leads to poor development of the fetus (Potter’s syndrome) and is associated with a high mortality
